The IT landscape is changing. Hardware takes place for serverless and resources are moving to public cloud platforms. With that, also the IT processes are changing. In this blog post, I show how to make one of the most common processes more secure in the public cloud. Manage a client endpoint with remote control.

Table Of Contents

In the case of an on-prem or hybrid scenario, IT admins use RDP over the local network. But imagine there is no local network directly connected to the backend and all resources are on a public cloud platform. Azure Virtual Desktop is a service that can run in the public cloud only. AVD fully supports Azure AD which makes it possible to connect with an internet connection only.
But what if a session host becomes unresponsive you can’t just connect with RDP to the local IP. I’ve seen situations where session hosts are accessible on a public IP over RDP, or ’temporary’ VPN connections are configured.

Luckily, there is a more secure, and modern way to remote control machines, Azure Bastion.

Azure Bastion

In short (from Microsoft), Azure Bastion is a service you deploy that lets you connect to a virtual machine using your browser and the Azure portal, or via the native SSH or RDP client already installed on your local computer. The Azure Bastion service is a fully platform-managed PaaS service that you provision inside your virtual network. It provides secure and seamless RDP/SSH connectivity to your virtual machines directly from the Azure portal over TLS. When you connect via Azure Bastion, your virtual machines don’t need a public IP address, agent, or special client software.

The key benefits in this context are:

  • RDP and SSH through the Azure portal or RDP client
  • No Public IP address is required on the Azure VM
  • No hassle of managing Network Security Groups (NSGs)

Check for all the Azure Bastion information in the overview: https://learn.microsoft.com/en-us/azure/bastion/bastion-overview

Deploy Azure Bastion in Azure Virtual Desktop environment

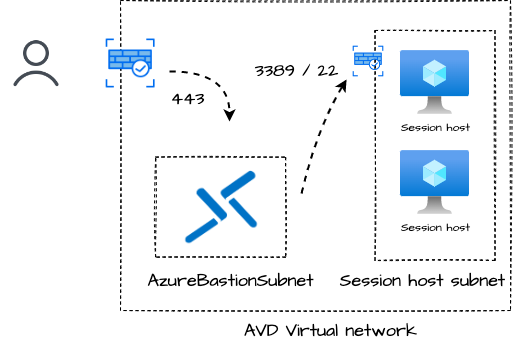

Azure Bastion lets you remote-control virtual machines. So there is no special treatment in an Azure Virtual Desktop environment. The main idea is to create a bastion host in the session host’s virtual network. To create a bastion host, I use the Az.Avd PowerShell module.

bastion-avd

Requirements

  • Latest Az.Avd Powershell module. Update with Update-Module Az.Avd
  • Available public IP
  • AzureBastionSubnet subnet in AVD virtual network

Add Azure Bastion

To deploy an Azure Bastion host you need a virtual network with a subnet called AzureBastionSubnet, and a public IP. Creating the subnet and public IP is not part of the Az.Avd module.

Adding a bastion host to the AVD environment is simple by using the Add-AvdBastionHost command. The command accepts input from the Get-AvdHostpool results. In the command below I created the AzureBastionSubnet subnet in the AVD virtual network and created a public IP which is the public endpoint.

After authentication, using Connect-AzAccount, provide the command below.

$avdParams = @{
    hostpoolName      = "AVD-Hostpool"
    resourceGroupName = 'rg-roz-avd-01'
}
$subnetId = "/subscriptions/xx/resourceGroups/rg-roz-avd-01/providers/Microsoft.Network/virtualNetworks/rz-vnet-01/subnets/AzureBastionSubnet"
$publicIpId = "/subscriptions/xx/resourceGroups/rg-roz-avd-01/providers/Microsoft.Network/publicIPAddresses/pip-external-avd"
Get-AvdHostPool @avdParams | Add-AvdBastionHost -BastionHostName "Avd-Bastion" -SubnetId $subnetId -PublicIpId $publicIpId -Verbose

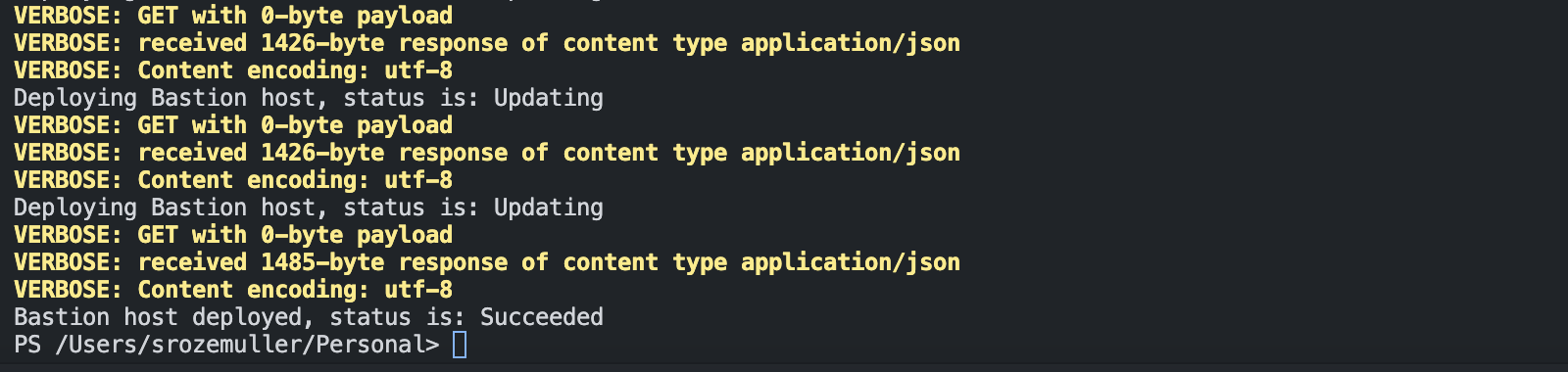

Deploying a Bastion Host takes time, the command shows the deployment status every 5 seconds. deploy-bastion-host

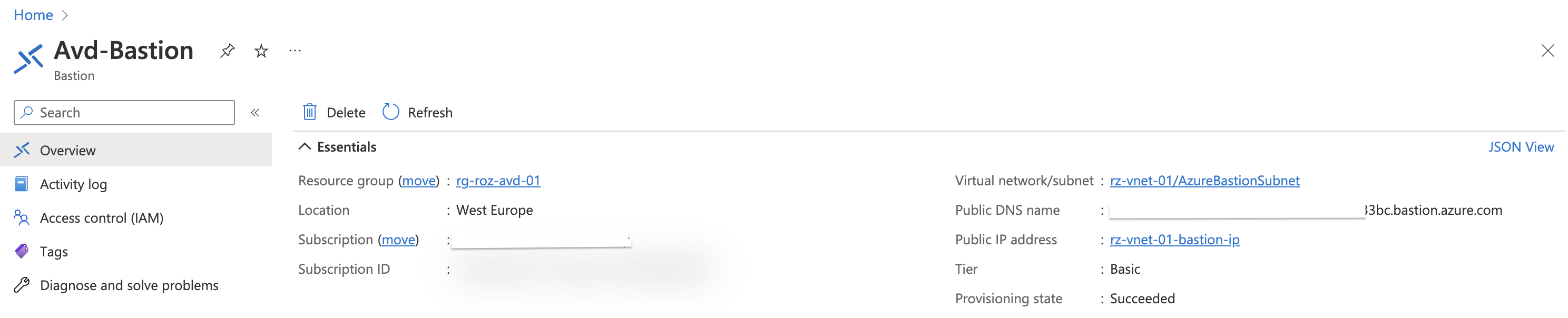

avd-bastion-deploy-finished

Remove Azure Bastion

Azure Bastion has pros but also cons. One of them is pricing. The Azure Bastion costs can be very expensive. To reduce costs, it is good to have a Bastion host as short as possible. Adding a host was very simple. With the command below it simply removes the host when it is not needed.

Get-AvdHostPool @avdParams | Remove-AvdBastionHost -Verbose

The command searches for Bastion hosts and the AVD virtual network based on the AVD host pool. The Bastion host related to the AzureBastionSubnet subnet is picked and removed.

remove-avd-bastion

Thank you for reading my blog deploy azure bastion host in avd environment automated.
I hope you got a bit inspired. Enjoy your day and happy automating 👋
